The TP-Link Archer AX20 is an excellent router. It can blanket the entirety of your home, has speeds sufficient for most high-bandwidth services, and is very stable. At less than $50, the Archer AX20 is a great option for a Wi-Fi 6 router.
TP-Link Archer AX20 Router Pros and Cons
TP-Link Archer AX20 Router Design

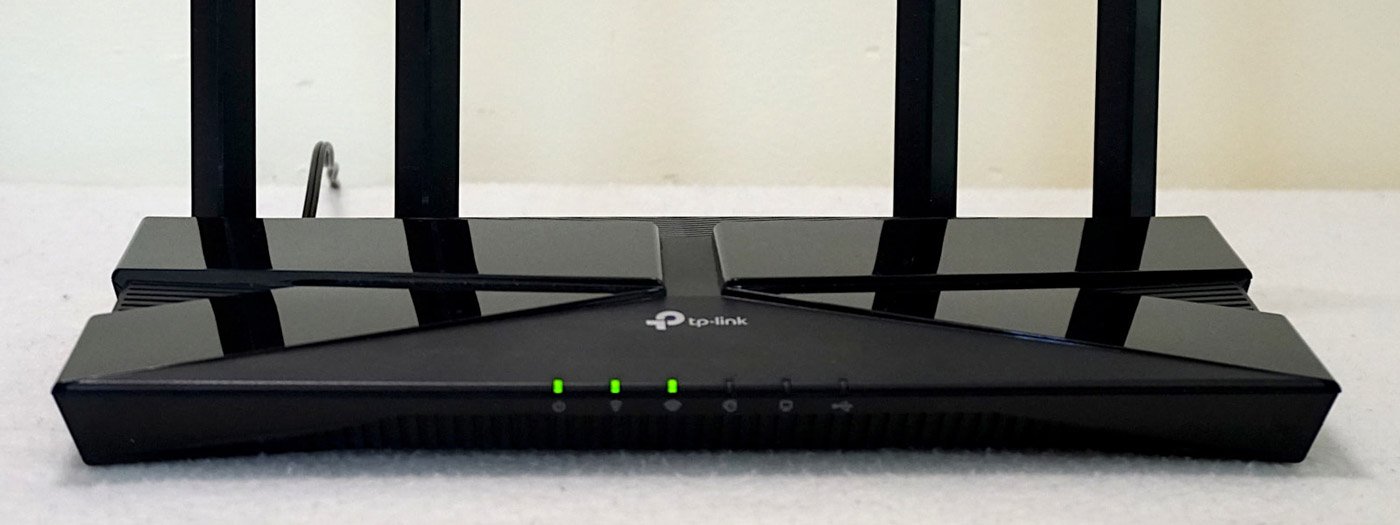

The front panel of the TP-Link Archer AX20 router is equipped with a variety of status indicator lights to show the current network connection status. The network status light is coloured multi and turns orange if the network fails. On the back are 4 Gigabit Ethernet LAN ports and 1 Gigabit Ethernet WAN port. It also offers a USB 2.0 attaching and sharing USB files through WLAN.
The Archer AX20 router can also wirelessly access USB external hard drive on other devices. Under side of the router is full of ventilation slot holes. The Archer AX20 can be wall-mounted, but you’ll need to buy screws yourself. The default Wi-Fi network name and password are printed on the label on the bottom of the router. Inside the packaging you will find the router itself with a CAT5E gigabit Ethernet cable, the power adapter and some user manuals. There is also a card that reminds you to download the Wi-Fi adapter drivers for your device to get a better experience with Wi-Fi 6 technology.
TP-Link Archer AX20 Router Feature
- Dual-Band Wi-Fi 6 Internet Router: Wi-Fi 6(802.11ax) technology achieves faster speeds, greater capacity and reduced network congestion compared to the previous generation.
- Next Gen 1.8 Gbps Speeds: Enjoy smoother and more stable streaming, gaming, downloading and more with Wi Fi speeds up to 1.8 Gbps (1200 Mbps on 5 GHz band and 574 Mbps on 2.4 GHz band)
- More devices eliminate more: Wi-Fi 6 communicates more data to more devices using the revolutionary OFDMA technology of more devices.
- Quad-Core Processor With Low Latency: With the 1.5 GHz quad-core CPU to ensure smooth transmission of multiple 4K/8K video streams
- Simple setup: Get your Internet up and running in minutes with the intuitive touchscreen interface.
TP-Link Archer AX20 Router Specifications
The TP-Link Archer AX20 router has a built-in 1.5 GHz quad-core processor to provide you with a fast, smooth and stable internet experience. The Archer AX20 router has a 1GB flash memory and 256MB RAM, which is more than enough resource to handle large-load data processing and router settings storage. This router is dual-band Wi-Fi, meaning that it has speeds up to 1200MBps on the 5GHz channel, as well as up to 574MBps on the 2.4GHz channel. This set of hardware and software functionalities propels the TP-Link AX1800 to become a solid, high-performance router for current homes.
| Brand | TP-Link |
| Model Name | Archer AX20 |
| Processor | Dual-Core CPU (V3) |
| Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |
| Special Feature | Beamforming, QoS, Access Point Mode, WPS, Parental Control |
| Frequency Band Class | Dual-Band |
| Included Components | Wi-Fi Router Archer AX20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
TP-Link Archer AX20 Router Performance
Testing the TP-Link Archer AX20 router I tested the Netgear Nighthawk RAX50 with an iPhone 12 from three different locations inside a 2000-square-foot house (15 feet away from the living room center, a corner of a bedroom (40 feet), and the backyard (70 feet). We also tested the Archer AX20’s performance by testing its download and upload speeds at several spots around each testing site. The particular speeds evaluated are:
| Archer AX20 2.4GHz Speedtest | ||
| Location | 2.4GHz Download Mbps | 2.4GHz Upload Mbps |
| Center of Living Room (15 Feet) | 75 | 52 |
| Corner of Bedroom (40 Feet) | 43 | 32 |
| Backyard (70 Feet) | 20 | 18 |
We put the router through different homes, and some with different devices on it at the same time. The TP-Link Archer AX20 was impressively reliable in our tests, as blazing fast speeds were consistently available whether you were in a room with previous routers had a hard time reaching.
| Archer AX20 5GHz Speedtest | ||
| Location | 5GHz Download Mbps | 5GHz Upload Mbps |
| Center of Living Room (15 Feet) | 455 | 210 |
| Corner of Bedroom (40 Feet) | 140 | 125 |
| Backyard (70 Feet) | 130 | 75 |
TP-Link Archer AX20 Router Verdict
